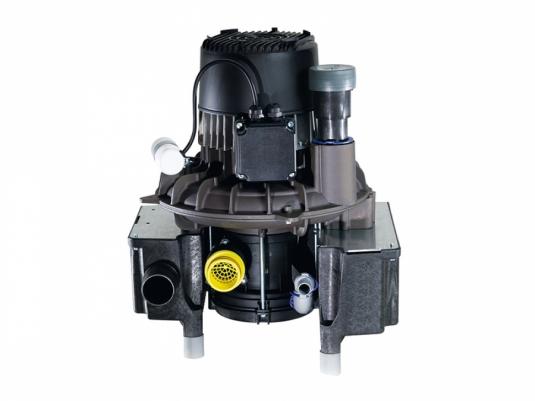

Afzuiging VS600
For two treatment chairs and three treatment rooms.
|
Technical Data |
VS 600 |
|
Voltage |
230 V 1~ / 400 V 3~ |
|
Frequency |
50 Hz / 50 - 60 Hz |
|
Current consumption |
5,0 A / 1,8 - 4,0 A |
|
Electrical power |
1,1 kW / 1 - 1,42 kW |
|
Vacuum |
170 mbar (BPV) |
|
Max. fluid throughflow rate |
10 l/min |
|
Rotational speed |
2.850 (rpm) |
|
Duty cycle |
100% (S1) |
|
Noise level |
approx. 63 dB(A) / approx. 63 - 68 dB(A) |
|
Dimensions |
H 50 x W 42 x D 41 cm, with housing H 65 x W 49 x D 53 |
|
Weight |
25 kg, with housing 45 |
